Stacking Doors
Insulated Stacking Door | ABX Industrial Overhead Door
Insulated Stacking Door manufactured by ABX Industrial Overhead Door for semi-heated industrial halls. OEM branding and container-loaded export delivery available.
Product Overview

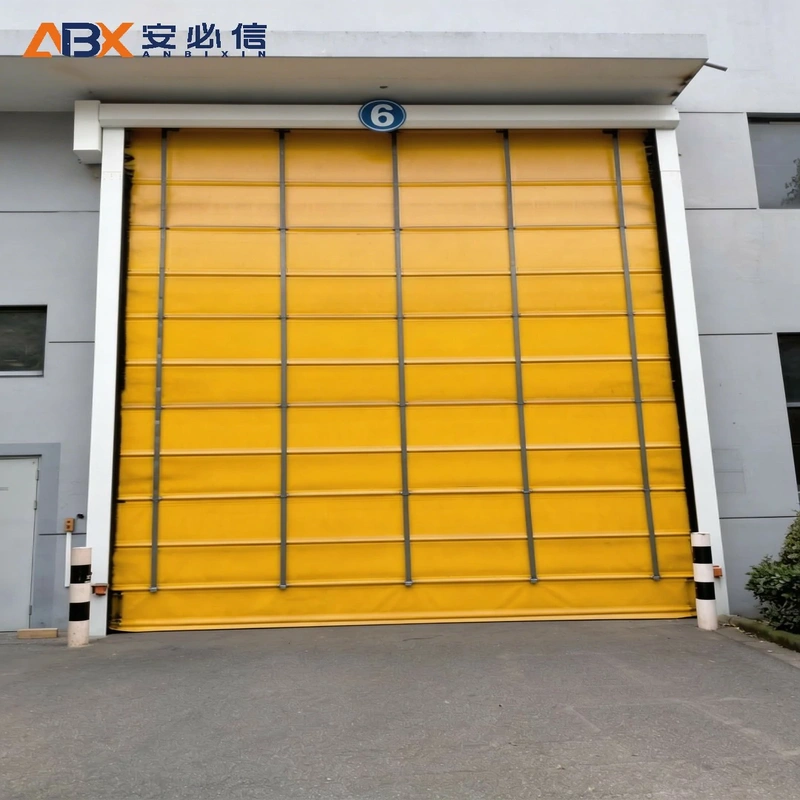

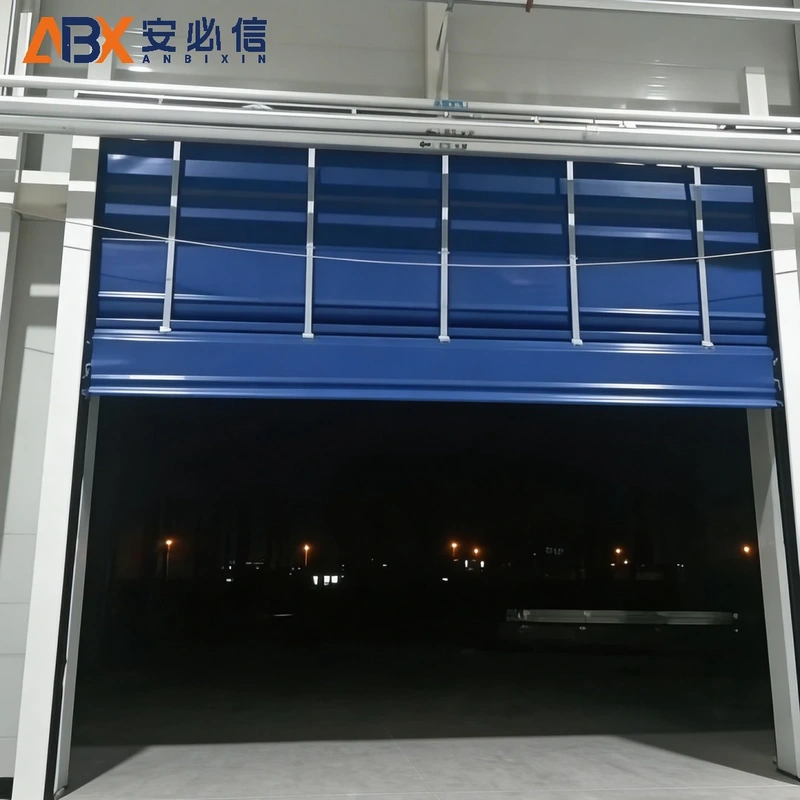

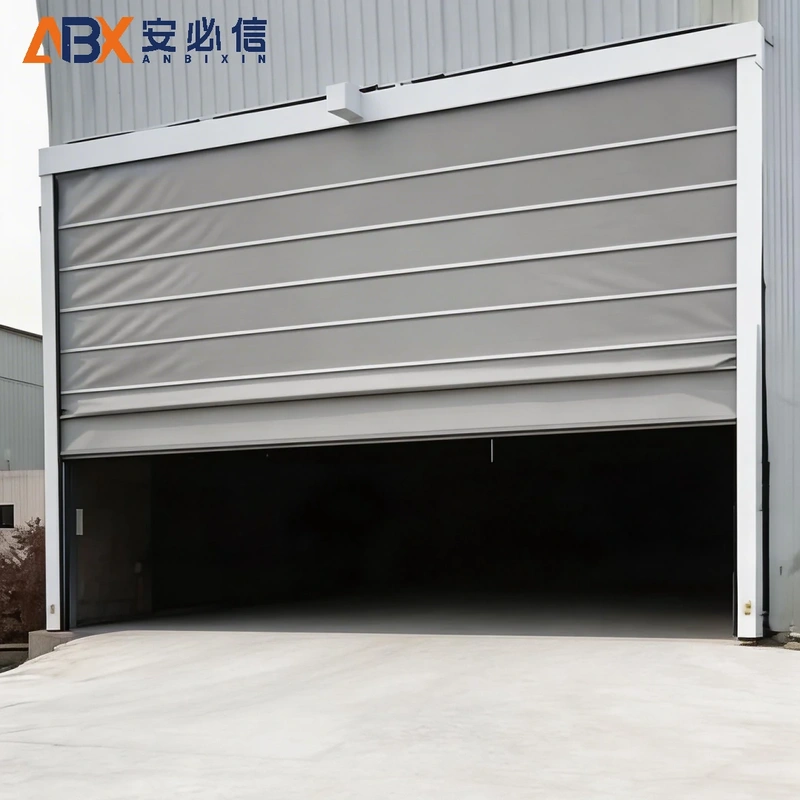

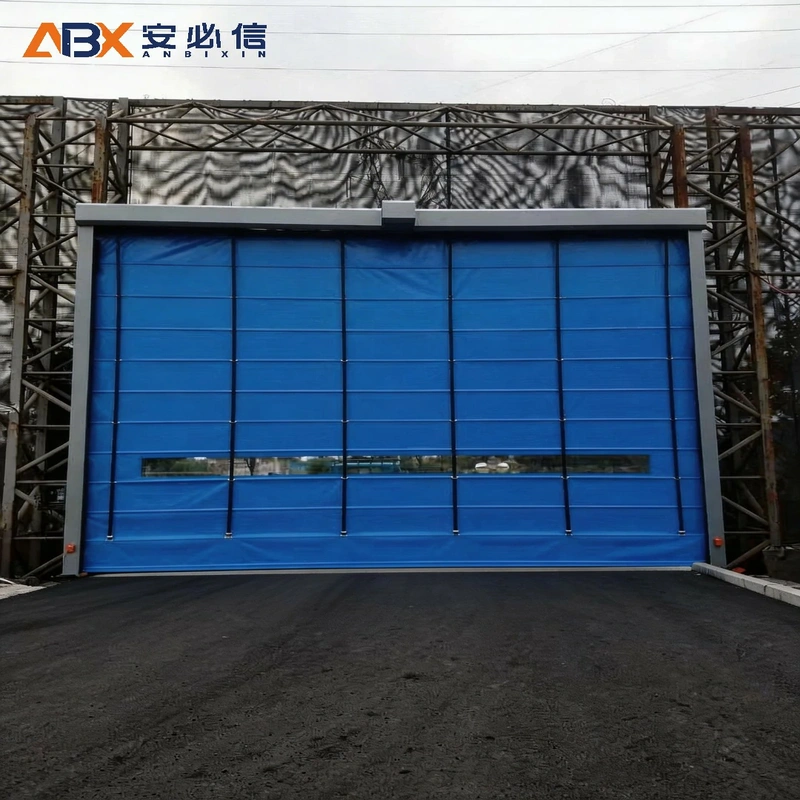

The Insulated Stacking Door stacks the door curtain above the opening, keeping the full opening width free of tracks and guides. It is the economical choice for semi-heated industrial halls where width matters more than extreme speed.
Key Features
- Clear opening up to W 9000 x H 6000 mm with virtually no width limitation
- Opening speed of 0.6-1.0 m/s for efficient vehicle flow
- Insulated PVC laths construction resistant to Class 4 (EN 12424) wind loads
- Rated for over 500,000 cycles with low-maintenance guides
- Soft start and soft stop protect the structure and the curtain
Technical Specifications
| Max Opening Size | W 9000 x H 6000 mm |
|---|---|
| Opening Speed | 0.6-1.0 m/s |
| Curtain | Insulated PVC laths |
| Wind Load | Class 4 (EN 12424) |
| Drive | Three-phase motor with frequency inverter |
Applications
Semi-heated halls needing both width and moderate insulation.
Export & Project Support
Contact hua@abxdoors.com for drawings, wind load calculations and a project-specific quotation.
