Stacking Doors
Wide Span Stacking Door | ABX Industrial Overhead Door
Wide Span Stacking Door manufactured by ABX Industrial Overhead Door for extra wide industrial openings. OEM branding and container-loaded export delivery available.
Product Overview

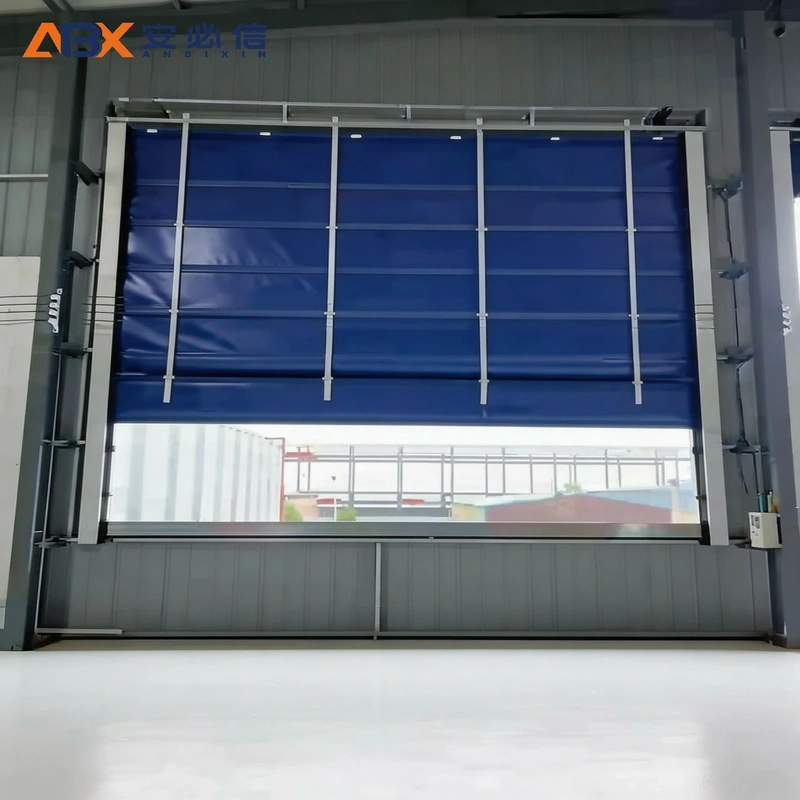

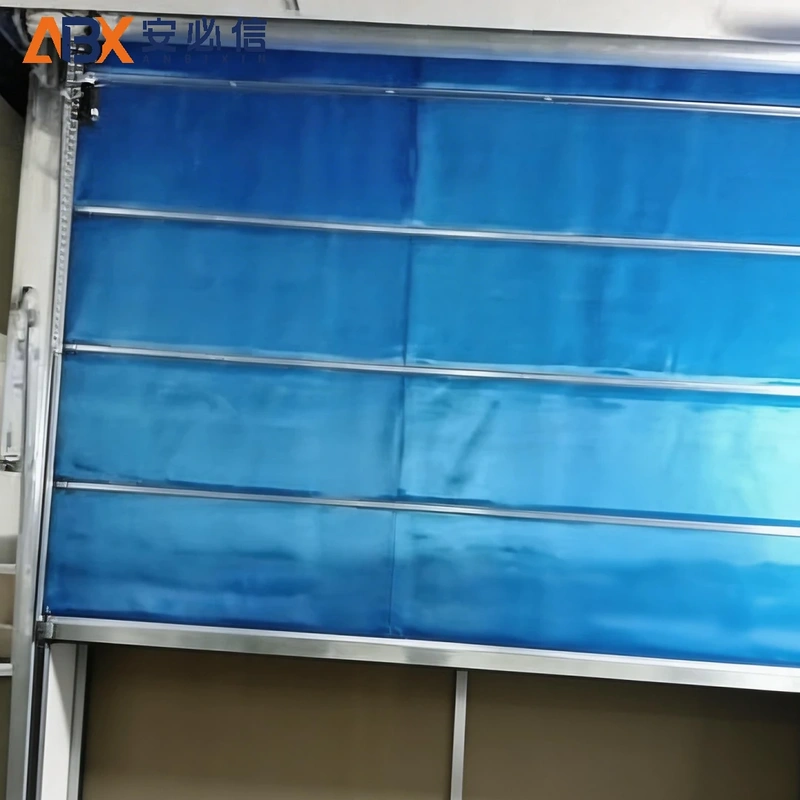

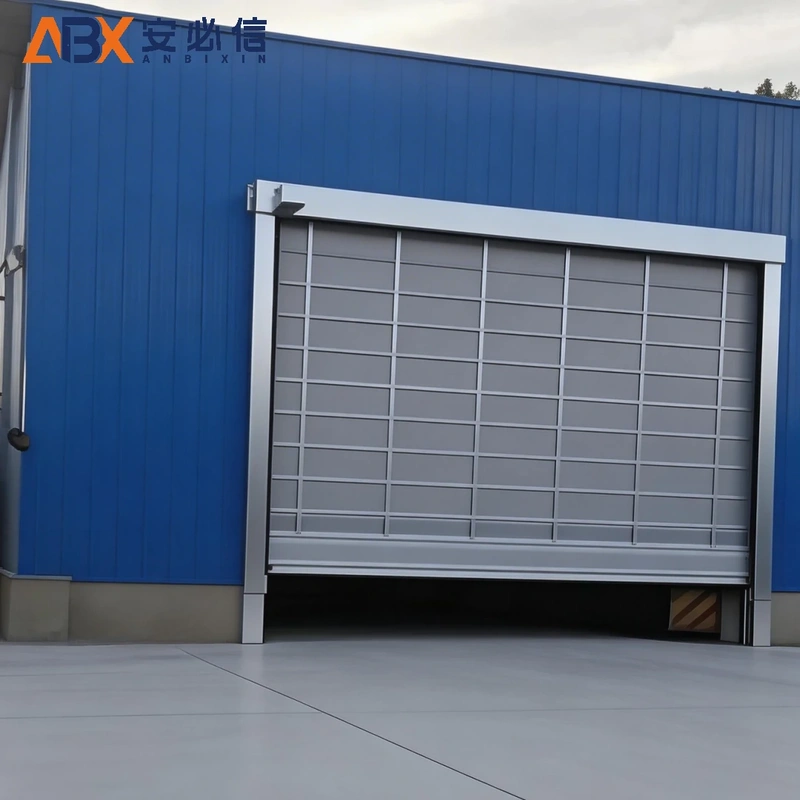

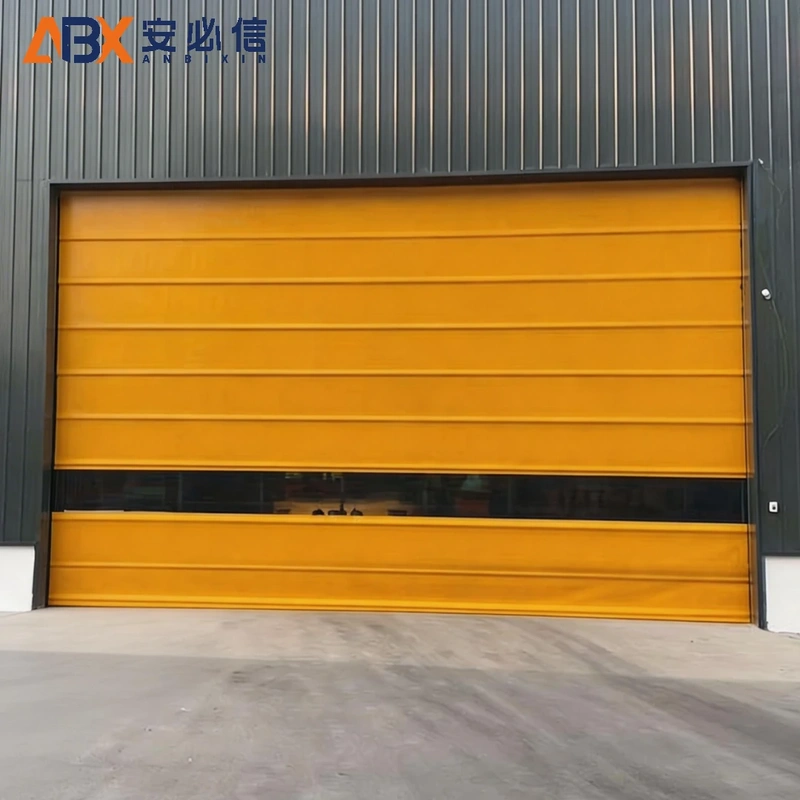

The Wide Span Stacking Door stacks the door curtain above the opening, keeping the full opening width free of tracks and guides. It is the economical choice for extra wide industrial openings where width matters more than extreme speed.
Key Features
- Clear opening up to W 15000 x H 8000 mm with virtually no width limitation
- Opening speed of 0.5-0.9 m/s for efficient vehicle flow
- Reinforced PVC, twin mast construction resistant to Class 5 (EN 12424) wind loads
- Rated for over 500,000 cycles with low-maintenance guides
- Soft start and soft stop protect the structure and the curtain
Technical Specifications
| Max Opening Size | W 15000 x H 8000 mm |
|---|---|
| Opening Speed | 0.5-0.9 m/s |
| Curtain | Reinforced PVC, twin mast |
| Wind Load | Class 5 (EN 12424) |
| Drive | Three-phase motor with frequency inverter |
Applications
Extra wide spans where sectional doors would be uneconomical.
Export & Project Support
Contact hua@abxdoors.com for drawings, wind load calculations and a project-specific quotation.
