Industrial Vertical Lift Door | ABX Industrial Overhead Door
Industrial Vertical Lift Door manufactured by ABX Industrial Overhead Door for high ceiling production halls. OEM branding and container-loaded export delivery available.
Product Overview

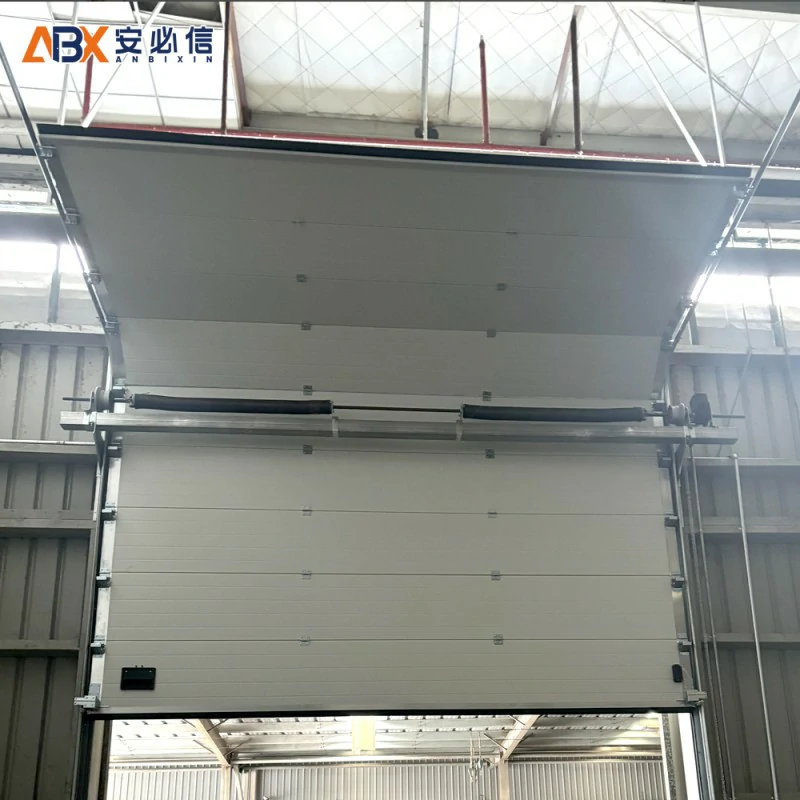

The Industrial Vertical Lift Door is engineered for high ceiling production halls that demand reliable daily operation, thermal insulation and a long service life. Every door set leaves our Jiangsu factory pre-assembled and test-run before shipment.
Key Features
- 40-80 mm steel PUF sandwich panels with a thermal transmission of approx. 0.38 W/m2K
- Torsion spring balancing rated for more than 100,000 opening cycles
- Wind reinforcement suitable for 1500 Pa wind load zones
- Safety package as standard: photo eyes, safety edge and anti-fall device
- Optional three-phase motor with manual chain hoist backup
Technical Specifications
| Max Opening Size | W 7000 x H 8000 mm |
|---|---|
| Panel Thickness | 40 / 60 / 80 mm |
| Opening Speed | 200-300 mm/s |
| Panel Material | 40-80 mm steel PUF |
| Wind Load | 1500 Pa |
| Surface Finish | Standard RAL / custom |
Applications
Halls with enough headroom for a fully vertical door travel.
OEM & Export Support
ABX supports OEM branding, custom RAL colors and container-loaded export delivery worldwide. Send your opening dimensions to hua@abxdoors.com and receive a quotation within 24 hours.
